Patwa and Bhayani: Effectiveness and safety of cuff inflation technique over conventional method of Magill forceps for Nasotracheal intubation under direct laryngoscopy: Randomized controlled trial


Introduction

Nasotracheal intubation (NTI) appears to be useful in surgeries of mouth, pharynx, larynx and also neck.1 During NTI, once the tube is passed through the nasal cavity into the oropharynx, its misplacement can occur. It can impinge upon oesophagus, on the anterior commissure of larynx, in the valeculla or in the pyriform fossa.2 So multiple techniques are available to facilitate entry of endotracheal tube (ETT) into the larynx. Commonly Magill forceps is used to navigate the ETT from oropharynx to laryngeal inlet. Magill forceps may cause damage to the cuff of an ETT or may injure oropharyngeal mucosa, which can be easily prevented by cuff inflation technique.3 Cuff inflation technique had been suggested by Sir Gorback in 1987 for blind nasal intubation and was used clinically by Sir Van Elstraete and Sir Chung in 1993.4 In the cuff inflation technique for NTI, once the ETT passes through nostril and appears in the pharynx, the ETT cuff is then inflated with 10-15 ml of air. Inflation lifts the cuff of ETT off the posterior pharyngeal wall and thus direct the tube towards the glottis.5 So it avoids instrumentation, trauma to upper airway mucosa and ETT cuff perforation. Till date only one study is available who assessed the role of cuff inflation technique for oropharyngeal navigation of three different types of ETT under direct laryngoscopy.6 There has not been any study for comparison of both the techniques under direct laryngoscopy. Hence we undertook this study of comparison of two different techniques for oropharyngeal navigation of ETT under direct laryngoscopy for NTI.

Materials and Methods

After the approval from institutional ethical committee for human research, a single blinded randomized controlled trial was carried out. Total of 80 adult patients of either sex, between ages 18-60 years, belonging to ASA status I and II, who were scheduled for elective surgical procedures requiring Nasotracheal intubation under general anaesthesia were selected. Patients with history of upper respiratory tract infection, bleeding disorder, known airway anomaly, previous surgery in nasal cavity, nasal obstruction and Mallampati Grade III and IV were excluded from the study.

Sample size was calculated as follows:

Minimum 76 patients (38 per group) required for present study to estimate mean difference of intubation time by 1.4 seconds with standard deviation of 1.22 at 99.9% confidence and 95 % power. Pilot study was done in 10 patients So total of 80 cases were taken to increase efficacy of the result. Randomisation was done by sealed envelope method. Patients were randomly allocated into two groups. Group C- Cuff inflation technique (n=40) was used for nasotracheal intubation and Group M- Magill forceps technique (n=40) was used for nasotracheal intubation.

Patients were explained about procedure and written informed consent was taken. Patients were kept nil by mouth overnight.

On the day of surgery, anaesthesia machine, monitor, airway equipments, drugs were checked and kept ready. Multipara monitor was attached and Vital Parameters like pulse rate, mean pulse rate at the time of induction, after intubation, 3 min, 5 min, 10min, 15 minutes after insertion of ETT were observed in both the groups. Nasal preparation was done with application of xylometazoline 0.05% drops into each nostril 30 minutes before induction and lubrication of nose with lidocaine 2% jelly 10 minutes before procedure. Investigators were blinded to avoid bias in the study. All the patients were premedicated with Inj. glycopyrrolate 0.005 mg/kg intravenous, Inj. tramadol 1 mg/kg intravenous, Inj. ondensatron 0.08mg/kg intravenous and oral midazolam half an hour before proposed time of surgery. The IV access was secured with 18G IV cannula in recovery room and IV fluid started at 2-4ml/kg/hr. Pre oxygenation was done for six minutes through face mask and closed circuit with oxygen flow at six litres/min. Induction of general anaesthesia was done with inj. propofol 2-2.5mg/kg given intravenously and after loss of eyelid reflex inj. succinylcholine 2mg/kg intravenous was given. After disappearance of fasciculations from toes, flexometallic (wire reinforced) tube 23 cm was advanced from nose into the oropharynx and direct laryngoscopy was done. In Cuff inflation technique, once the tip was in oropharynx, it was inflated initially with 10 ml of air which was then incremented with 5 ml as per the need until the tip of Endotracheal tube was lifted and got aligned with glottic opening. Once the tube was into laryngeal inlet, the cuff was deflated and tube was advanced further into the trachea. Again the cuff of the tube was inflated with appropriate amount of air to achieve adequate tracheal seal. Proper placement of the tube was confirmed with capnography and bilateral chest auscultation. After the two attempts if tube was not aligned with glottic opening then intubation was done with the help of Magill forceps. It was considered as failed attempt.

Figure 1

Once tube enters oropharynx direct laryngoscopy is done and tube is identified. Tip of endotracheal tube entered oropharynx and lied against posterior pharyngeal wall

https://typeset-prod-media-server.s3.amazonaws.com/article_uploads/aef48f63-5c17-4e7d-9678-eccf811582d8/image/537f3897-8b9c-434c-a6ed-c8d347079515-uimage.png

Figure 2

Under direct laryngoscopy tip of the tube was identified and cuff was inflated with initially 10 ml of air which is then exceeded by 5 ml till tip is aligned with glottic opening. Once tip entered glottic opening cuff was deflated and tube advanced further

https://typeset-prod-media-server.s3.amazonaws.com/article_uploads/aef48f63-5c17-4e7d-9678-eccf811582d8/image/2da666a2-9003-4ad4-b4c7-0d983b7de178-uimage.png

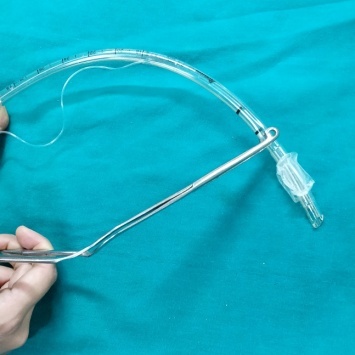

In Magill forceps technique (Figure 3), with the help of Magill forceps, once the tip reached oropharynx, Flexometallic(wire reinforced) tube was held away from cuff to avoid injury to cuff and align the tip in front of glottic opening and the tube was advanced further to achieve successful intubation. Then the cuff was inflated with appropriate amount of air to achieve adequate seal. Proper placement of the tube was confirmed with capnography and bilateral chest expansion.

Figure 3
https://s3-us-west-2.amazonaws.com/typeset-prod-media-server/b924c485-9aa1-426b-8e67-8dd4b01f2c1bimage5.jpeg

During advancement of ETT from oropharynx to laryngeal inlet, any manipulation required in the form of BURP (backward, upward, rightward pressure), rotation of tube or flexion of head was noted in both the techniques. Heart rate, blood pressure, SpO2, EtCO2 was noted before induction, at the time of induction, after intubation and, 3, 5, 10 and 15 minutes after intubation. The parameters observed were 1. Time required for intubation: It is a time taken for navigation of ET tube from oropharynx till confirmation of proper tracheal placement by square wave capnography. 2. N with the help of Magill forceps, umber of attempts of intubation. Maximum two attempts were allowed in both the groups. After two attempts of unsuccessful intubation, patient was intubated with conventional technique of Magill forceps in group C. In group M if more than two attempts were required, then these patients were excluded from the study. 3. Any manipulation required at the time of intubation 4. Injury to oropharyngeal structures and to the cuff of endotracheal tube (audible leak during intraoperative period after adequate seal pressure is achieved) was noted. Cuff was also checked postoperatively for any damage.

Mean and standard deviation values were taken out. Statistical analysis of the data for the various parameters was done using paired t-test for intra-group comparison and student t-test for intergroup comparison. Chi-square test was used for qualitative (non parametric) data using MedCalc software. The significance of statistical analysis was judged by p-value. The p value < 0.05 was taken as significant, and p value < 0.001 was taken as highly significant.

Results

The two groups were comparable to each other with respect to age, sex, ASA status. (Table 1). Time taken for navigation of tube from oropharynx till appearance of first capnographic wave was 23.85±3.04 seconds in group C as compared to 22.07±2.66 seconds with group M. It was comparable and statistically not significant. (P Value=0.09) (Table 2). First attempt intubation success rate was 95% (38/40) in group C as compared to 97.5% (39/40) in group M. In both the groups, not more than 2 attempts were required to intubate all the patients' (p value=1.00) (Table 3). Manipulation manoeuvres (like BURP) were required in 2/40 (5%) cases in group C as compared to 5/40 (12%) cases in group M. But this was not statistically significant (P=0.428) (Table 4). Trauma to oropharyngeal structures was seen in 0/40 (0%) cases in Group C while in 8/40 (20%) cases in Group M. (P=0.009). This was statistically significant. (Table 5). Injury to cuff of endotracheal tube was seen in 0/40 (0%) cases in Group C while in 1/40 (3%) case in Group M. (P value =1.000). However this was statistically not significant. (Table 5).

Table 1

Demographic data

Parameters

Group C

Group M

P Value

Age (Years)

37.42±10.64

38.92±5.94

p-0.438

Sex (Male/Female)

21/19

23/17

p-0.501

ASA status(I/II)

19/21

20/20

p-1.000

Table 2

Time of intubation

Parameters

Group C n=40

Group M n=40

P Value

Time of intubation (seconds)

23.85±3.04

22.07±2.66

P=0.09

Table 3

Number of attempts of intubation

Parameter

Grading

Group C n=40

Group M n=40

P Value

Attempts of intubation

First Attempt

38/40

39/40

P-1.000

Second Attempt

2/40

1/40

p-1.000

Table 4

Manipulation required

Parameter

Group C n=40

Group M n=40

P Value

Manipulation required

2/40

5/40

P-0.428

Table 5

Side effects

Parameter

Group C n=40

Group M n=40

P Value

Injury to oropharyngeal structures

0/40

8/40

P-0.009

Injury to cuff of endotracheal tube

0/40

1/40

P-1.000

Graph 1

Showing mean systolic blood pressure between two groups

https://typeset-prod-media-server.s3.amazonaws.com/article_uploads/aef48f63-5c17-4e7d-9678-eccf811582d8/image/62fd82aa-0203-4c2c-9780-97e3a2a64b8a-uimage.png

Graph 2

Showing mean diastolic blood pressure in both group

https://typeset-prod-media-server.s3.amazonaws.com/article_uploads/aef48f63-5c17-4e7d-9678-eccf811582d8/image/62f9e149-08c8-4668-aa3d-38c9ac35bb8e-uimage.png

Discussion

Nasotracheal intubation was popularized by Sir Magill in 1920.6 NTI can be done with the conventional laryngoscopy or with videolaryngoscope. Complications can occur during NTI like epistaxis, trauma to nasal mucosa, perforation of pyriform fossa, retropharyngeal perforation or olfactory nerve damage.6, 7 Now there are specialized tubes available, which are preformed, adjustable in shape, softer and reinforced to decrease the above complications. Wire reinforced tracheal tube reduces nasal morbidity and takes more favourable pathway for nasal intubation.7, 8 Therefore, in our study we preferred wire reinforced (flexometallic) tube. Preformed tubes are difficult to pass even under direct laryngoscopic vision, as they do not conform to the airway curvature and tend to remain along posterior pharyngeal wall.8 NTI with conventional laryngoscope requires help of Magill forceps, while NTI with videolaryngoscope is preferably done with cuff inflation technique.9 In patients with restricted mouth opening and cases in which introduction of Magill forceps is difficult, cuff inflation proves to be a good alternative and decreases chances of oropharyngeal trauma. In cancer patients use of Magill forceps may cause oropharyngeal mucosal injury and lead to bleeding.3 Availability of videolaryngoscope is an issue and it also requires expertise. Thus we decided to undertake this prospective randomized, single blinded clinical study to evaluate the effectiveness of two different techniques for nasotracheal intubation.

We observed slight difference in time period between both the techniques. It may be due to time taken to inflate and deflate the cuff. Findings of the present study were in accordance with study done by Kumar R et al. in the study done by Chung YT et al., it was observed that neutral head position combined with cuff inflation specially in patients with cervical instability resulted in comparable success rates for NTI.10 Khadake SM et al. found that the cuff inflation technique consistently improved the navigation of all flexometallic endotracheal Tube. With cuff inflation, intubation was successful in 19 of 20 patients (95%), and concluded that in normal patients, tracheal tube cuff inflation in the oropharynx increases the success rate of blind nasotracheal intubation.11 Elstraete ACV et al. assessed the efficacy of tracheal tube cuff inflation in the oropharynx as an aid to blind nasotracheal intubation.2

In our study, the first attempt intubation rate in both groups was comparable though Magill forceps group required external manoeuvring in more number of cases. Side effects like trauma to oropharyngeal structures were identified in the form of injury to tonsillar pillar or surrounding structures under direct laryngoscopy while packing the oral cavity. Similar results have been reported by many studies like Xue FS et al12 technique as an aid while doing nasotracheal intubation with airtraq videolaryngoscope, 72/72 (100%) tubes were inserted with Cuff inflation technique. In another study by Elstraete ACV et al assessed the efficacy of tracheal tube cuff inflation in the oropharynx as an aid to blind nasotracheal intubation in 20 patients and showed that, 15 patients were intubated with cuff inflation technique at first attempt and remaining cases were intubated at second attempt.2 Khadake SM et al, compared Kings Vision guided cuff inflation technique with conventional technique of use of Magill forceps for nasotracheal intubation. They found more incidence of airway injury with Magill forceps than with cuff inflation technique.11 In the same study of Khadake, the ETT tube cuff perforation was seen in 1/30 cases with Magill forceps and 0/30 cases with cuff inflation technique. Limitation of our study was that we excluded patients with abnormal airways and anatomy. Secondly, blinding of the investigators who performed the intubations and who assessed the degree of oropharyngeal trauma after NTI was not possible. All intubations were done in paralysed patients.

Conclusion

The cuff inflation technique can be used as an effective alternative to Magill forceps for oropharyngeal navigation of endotracheal tube under direct laryngoscopy guided nasotracheal intubation in patients with normal airways.

Source of Funding

None.

Conflict of Interest

The authors declare no conflict of interest.

References

1

CEJ Hall LE Shutt Nasotracheal intubation for head and neck surgeryAnaesthesia200358324956

2

ACV Elstraete JH Pennant NM Gajraj RA Victory Tracheal tube cuff inflation as an aid to blind nasotracheal intubationBr J Anaesth19937066913

3

M Review SB Systems B Columbia Nasotracheal Intubation in Head and Neck Cancer Patients by Videolaryngoscope Using Cuff Inflation TechniqueJ Anesth Crit Care Open Access20177434

4

MS Gorback Inflation of the endotracheal tube cuff as an aid to blind nasal endotracheal intubationAnesth Analg19876699167

5

HK Baddoo BJ Phillips Cuff inflation to aid nasotracheal intubation using the C-MAC videolaryngoscopeGhana Med J2011452846

6

V Chauhan G Acharya Nasal intubation: A comprehensive reviewIndian J Crit Care Med201620116627

7

D Prasanna S Bhat Nasotracheal Intubation : An OverviewJ Maxillofac Oral Surg201413436672

8

A Ahmed-Nusrath JL Tong JE Smith Pathways through the nose for nasal intubation: a comparison of three endotracheal tubesBJA Br J Anaesth2008100226974

9

R Kumar E Gupta S Kumar D Anesthesiology KR Sharma NR Gupta Cuff inflation-supplemented laryngoscope-guided nasal intubation: A comparison of three endotracheal tubesAnesth Analg2013116361924

10

YT Chung MS Sun HS Wu Blind nasotracheal intubation is facilitated by neutral head position and endotracheal tube cuff inflation in spontaneously breathing patientsCan J Anesth20035055113

11

SM Khadake G Swamy A Deshmukh S Gujar S Gajanan Cuff inflation technique under king vision video laryngoscope superior to conventional method of Magill forceps for nasotracheal intubationSch J App Med Sci20164122630

12

FS Xue JH Liu YJ Yuan X Liao Q Wang Cuff inflation as an aid to nasotracheal intubation using the Airtraq®laryngoscopeCan J Anesth201057551920
